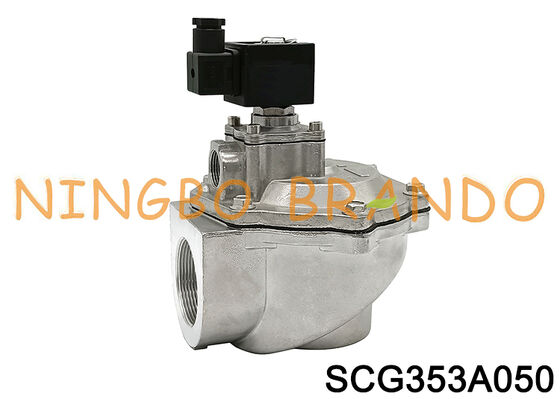

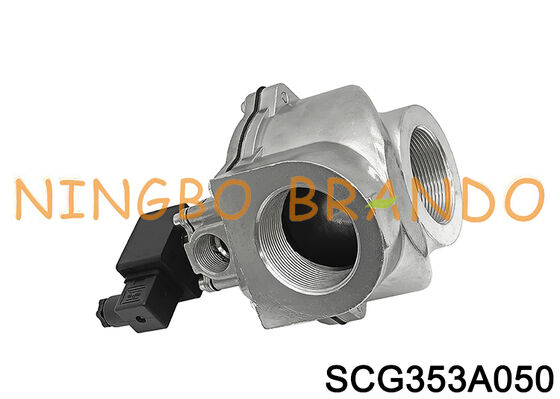

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal

  • ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
  • ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
  • ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
  • ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal
تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: Brando
إصدار الشهادات: CE
رقم الموديل: SCG353A050
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 مجموعة
الأسعار: قابل للتفاوض
تفاصيل التغليف: الصندوق الداخلي ، الكرتون ، البليت
وقت التسليم: التفاوض
شروط الدفع: L/C ، T/T ، Western Union ، PayPal
القدرة على العرض: 100000 جهاز كمبيوتر في الشهر
اتصل
مفصلة وصف المنتج
اسم المنتج: نبض جيت صمام حجم الميناء: 2 بوصة
بعيد أو لا يتجزأ: طيار متكامل مادة الجسم: الألومنيوم
مادة الحجاب الحاجز: NBR نطاق الضغط: 0.3 إلى 0.8 ميجا باسكال
نوع الصمام: الزاوية اليمنى الفولتية: 220VAC ، 24VDC
إبراز:

SCG353A050 Pulse Valve,2'' Pulse Jet Valve,ASCO SCG353A050

,

2'' Pulse Jet Valve

,

ASCO SCG353A050

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal


Pulse jet valves are for controlling air pulses in dust collectors. Aluminium diecast 2-way valves are high flow, diaphragm operated angle body specially designed for reverse jet type dust collectors. The designs have a spring construction with only one moving part, high flow long life and fast opening combine to offer a superior design for the dust collector systems. The high-speed operation not only saves the compressed air but it provides the kind of shock wave necessary to free the dust from filter bags. Valves are offered in both integrated and remote coil configurations.


Features:
1. High quality NBR diaphragm for longer life
2. High flow factor for effective cleaning
3. Valve can be mounted in any position
4. Quick on & off response time


Technical Data of 353 Series Pulse Jet Valves:

Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Nominal Size
φ20mm
φ25mm
φ40mm
φ50mm
φ62mm
Working Pressure
0.3 to 0.8MPa
Environment Temperature
-5 to +55℃
Relative Humidity
≤85%
Operating Medium
Dry clean compressed air
Voltages
220VAC, 24VDC


Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.


Dimension of SCG353A050 Pulse Jet Valve:

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 0


Video of SCG353A050 Pulse Jet Valve:


More ASCO Type Pulse Valve For You to Choose:

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 1ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 2ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 3

           Right Angle Type                        Remote Pilot Type                       Immersion Type

ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 4ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 5ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 6ASCO Type 2'' SCG353A050 Pulse Jet Diaphragm Valve For Dust Removal 7

            Diaphragm                     Solenoid Coil                Armature Assembly            Pulse Controller


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
