| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BRANDO |
| إصدار الشهادات: | CE, ISO |
| رقم الموديل: | C113825 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | كيس بلاستيك ، صندوق ، كرتون ، منصة نقالة |
| وقت التسليم: | من 4 إلى 7 أيام عمل |
| شروط الدفع: | L / C ، T / T ، باي بال ، ويسترن يونيون |
| القدرة على العرض: | 100000 مجموعة في الشهر |
| اسم المنتج: | نبض صمام الحجاب الحاجز | رمز الطلب: | C113825 ، C1138-25 |
|---|---|---|---|
| مادة الحجاب الحاجز: | NBR ، FKM | 1 مجموعة: | 1 قطعة الحجاب الحاجز ، 1 قطعة الربيع |
| حجم منفذ صمام النبض المناسب: | 1.5 '' | نموذج صمام النبض المجهز: | G353A045 |
| إبراز: | ASCO Diaphragm C113825,ASCO Membrane C113825,C113825 Pulse Valve Diaphragm,ASCO Membrane C113825,C113825 Pulse Valve Diaphragm |
||

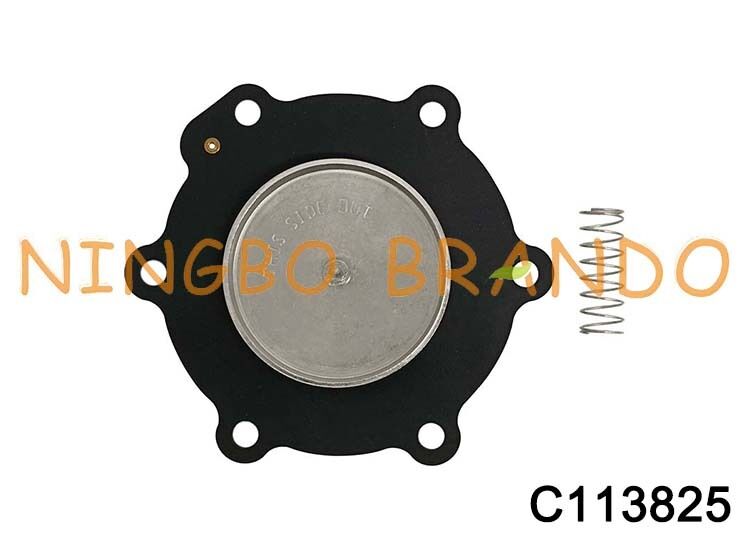

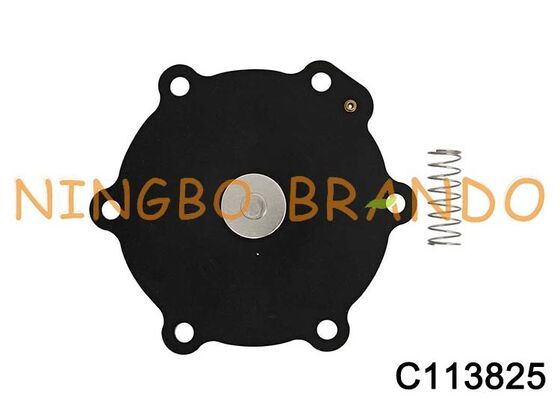

C113825 C113-825 Diaphragm Repair Kit For G353A045 ASCO Pulse Jet Valve 1.5''
C113825, C1138-25 Diaphragm (Membrane) for ASCO pulse valve G353A045; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. Pulse Jet Valve is a solenoid pilot operated diaphragm valve specially designed to deliver extremely fast pulsing in reverse-jet dust collector systems. With its high flow rates, higher peak pressure and the fastest response times on the market it delivers optimal filter cleaning performance, while using significantly less air. This results in energy savings for the user.
Ordering Number of Diaphragm For ASCO Pulse Valve:
|
Valve Port Size
|
Pulse Valve Model
|
Diaphragm Model
|
Diaphragm Material
(FKM is also available)
|
|
3/4''
|
SCG353A043
|
C113444
|
TPE (White), NBR (Black)
|
|
1''
|
SCG353A044
|
||
|
3/4''
|
SCG353-052
|
||
|
1''
|
SCG353-053
|
||
|
3/4''
|
SGG353A043
|
||
|
1''
|
SGG353A044
|
||
|
3/4''
|
SGG353-052
|
||
|
1''
|
SGG353-053
|
||
|
1 1/2''
|
SCG353A047
|
C113827
|
NBR
|
|
SGG353A065
|
|||
|
2''
|
SCG353A050
|
C113685, C113686
|
NBR
|
|
2 1/2''
|
SCG353A051
|
||
|
3''
|
SCXE353.060
|
C123432, C123433
|
NBR
|
|
SCG353D060
|
|||
|
3/4''
|
G3530A41
|
C113443
|
NBR
|
|
1''
|
G353A042
|
||
|
3/4''
|
G353-055
|
||
|
1''
|
G353-056
|
||
|
1 1/2''
|
G353A045
|
C113825
|
NBR
|
|
G353-066
|
|||
|
1 1/2''
|
G353A046
|
C113826
|
NBR
|
|
G353A063
|
|||
|
2''
|
G353A048
|
C113684
|
NBR
|
|
2 1/2''
|
G353A049
|
Main Dimension of C113825 Diaphragm:
![]()
Product Video of C113825 Membrane:
Pictures of Pulse Valve Diaphragm Production:
![]()
More Related Products For you to choose:
| Threaded Type | Remote Pilot Type | Straight Through Type | Submerged Type |
| Diaphragm | Solenoid Coil | Solenoid Armature | Pulse Controller |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
