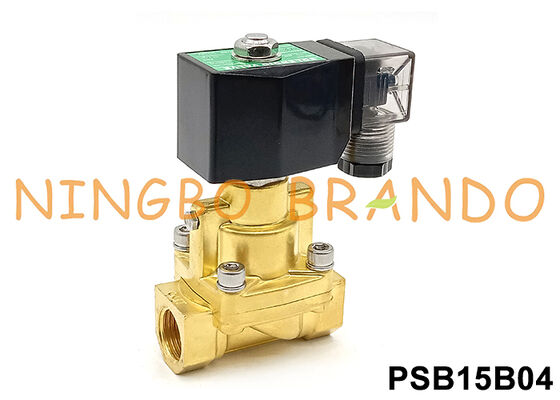

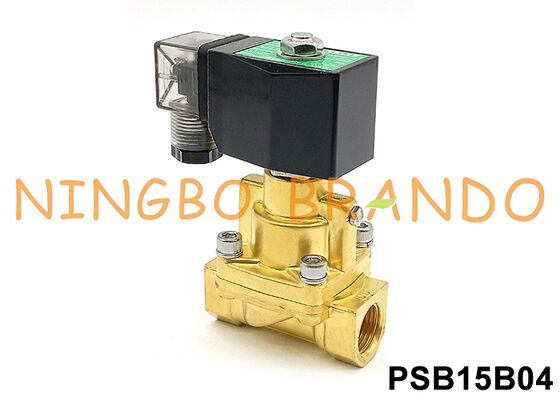

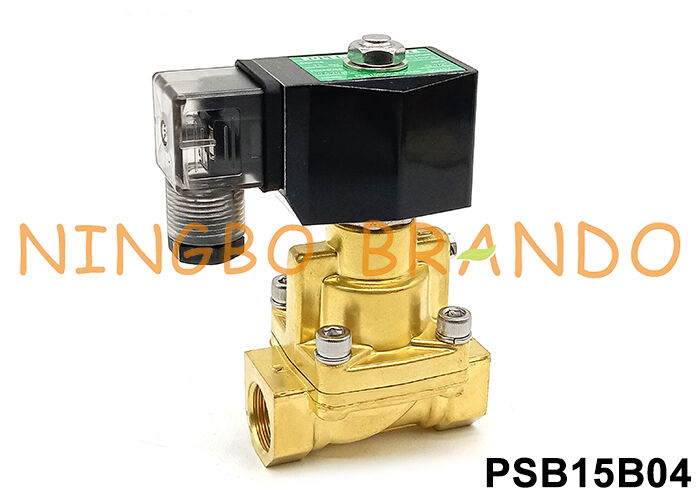

25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC

25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC

  • 25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC
  • 25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC
  • 25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC
  • 25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC
25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC
تفاصيل المنتج:
مكان المنشأ: نينغبو، الصين
اسم العلامة التجارية: BRANDO
إصدار الشهادات: CE, ISO
رقم الموديل: PSB15B04
شروط الدفع والشحن:
الحد الأدنى لكمية: 10 قطع
الأسعار: قابل للتفاوض
تفاصيل التغليف: مربع ، كارتون ، البليت
وقت التسليم: 7 أيام عمل
شروط الدفع: / تي تي، بايبال، ويسترن يونيون
القدرة على العرض: 50000 قطع شهريا
اتصل
مفصلة وصف المنتج
اسم المنتج: صمام الملف اللولبي وسائط العمل: البخار، الماء الساخن، الخ
حجم المنفذ: 1/2 " حجم الفتحة: 15 ملم
مادة الجسم: النحاس مادة الختم: بتف
درجة حرارة الوسائط: -10 إلى +180 درجة مئوية نطاق الضغط: 0.5 إلى 25 بار
عملية: تشغيل المكبس الجهد االكهربى: 12VDC ، 24VDC ، 24VAC ، 110VAC ، 220VAC
إبراز:

25 bar Brass Solenoid Valve,1/2'' Brass Solenoid Valve,Piston Steam Solenoid Valve

,

1/2'' Brass Solenoid Valve

,

Piston Steam Solenoid Valve

25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC



Technical Data:

Model No
Port Size
Orifice Size
Cv
Working Pressure
Body
Seal
Function
Voltage
PSB15B03
3/8''
15mm
4.6
0.5 to 25 bar
Brass
PTFE
2 Way NC
12VDC
24VDC
24VAC
110VAC
220VAC
PSB15B04
1/2''
15mm
4.6
PSB20B06
3/4''
20mm
8.5
PSB25B25
1''
25mm
12
PSB35B35
1 1/4''
35mm
26
PSB35B40
1 1/2''
35mm
26
PSB50B50
2''
50mm
48



Main Dimension:

25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC 0

Model No
Port
A
B
C
PSB15B03
3/8''
68
49
122
PSB15B04
1/2''
68
49
122
PSB20B06
3/4''
76
57
133
PSB25B25
1
96
70
144
PSB35B35
1 1/4''
120
90
168
PSB35B40
1 1/2''
120
90
168
PSB50B50
2''
150
112
190



Our Production:

25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC 1



FAQ:



Question 1: What is a solenoid valve used for?
Answer 1: A solenoid valve is used to open, close, mix, or divert media in an application. They are used in a wide variety of
applications.

Question 2: How can you tell if your solenoid valve is bad?
Answer 2: If the solenoid valve fails to open or close, is partially open, makes a humming noise or has a burned-out solenoid coil, you need to troubleshoot the valve solenoids.

Question 3: How do I choose a solenoid valve?
Answer 3: When choosing a solenoid valve, it is important to know your media. Depending upon the media and flow requirement, choose the material, port size, orifice size, temperature, pressure, voltage, response time and certification required for your application.



Similar Valves:

25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC 2 25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC 3 25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC 4 25 bar 1/2'' Steam Brass Solenoid Valve 24VDC 110VAC 220VAC 5
Max 200℃, 10 bar Max 185℃, 15 bar Max 200℃, 16 bar Max 300℃, 16 bar
