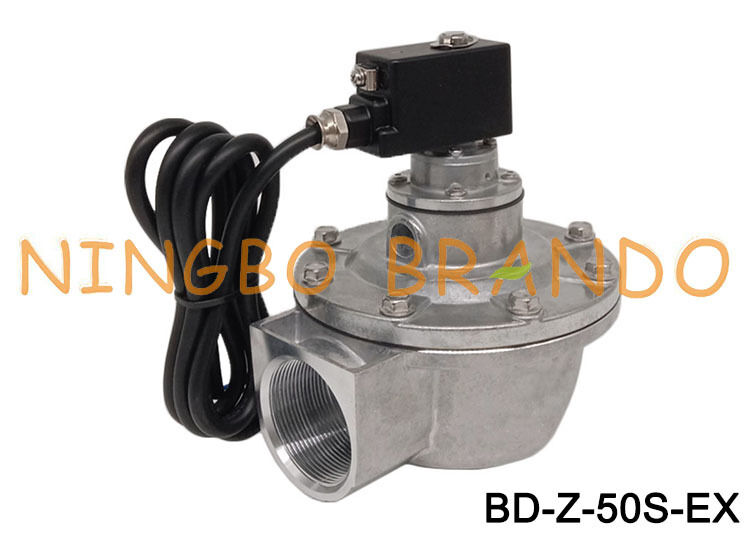

2'' Inch Explosion-Proof Pulse Jet Valve For Dust Collector DN50 220V 110V 24V

2'' Inch Explosion-Proof Pulse Jet Valve For Dust Collector DN50 220V 110V 24V

  • 2'' Inch Explosion-Proof Pulse Jet Valve For Dust Collector DN50 220V 110V 24V
2'' Inch Explosion-Proof Pulse Jet Valve For Dust Collector DN50 220V 110V 24V
تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: BRANDO
إصدار الشهادات: None
رقم الموديل: بي دي-Z-50S-EX
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 مجموعة
الأسعار: قابل للتفاوض
تفاصيل التغليف: الصندوق الداخلي ، الكرتون ، البليت
وقت التسليم: التفاوض
شروط الدفع: / تي تي، ويسترن يونيون، موني جرام
القدرة على العرض: 100000 جهاز كمبيوتر في الشهر
اتصل
مفصلة وصف المنتج
نوع الصمام: الزاوية اليمنى (الخيوط) حجم المنفذ: 2 ''
لفائف الجهد: 24 فولت ، 220 فولت مادة الحجاب الحاجز: نبر
لا من الحجاب الحاجز: 2 ضغط: 0.1 إلى 0.8mpa
مادة الجسم: سبائك الألومنيوم فئة الحماية: إثبات الانفجار
إبراز:

Explosion Proof Pulse Valve 2'',Ex Proof Pulse Valve 24v,Ex Proof Pulse Valve 110v

,

Ex Proof Pulse Valve 24v

,

Ex Proof Pulse Valve 110v

2'' Inch Explosion-Proof Pulse Jet Valve For Dust Collector DN50 220V 110V 24V


Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.


Different designs of pulse jet valves:


1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type


Technical Data of  Z Type Right Angle Pulse Jet Valves:

Integral Pilot
BD-Z-20
BD-Z-25
BD-Z-40S
BD-Z-50S
BD-Z-62S
BD-Z-76S
BD-Z-102S
Remote Pilot
RBD-Z-20
RBD-Z-25
RBD-Z-40S
RBD-Z-50S
RBD-Z-62S
RBD-Z-76S
RBD-Z-102S
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
G3''
G4''
Diaphragm Number
1
2
Diaphragm Material
NBR (Standard), FKM (Optional)
Body Material
Aluminum
Working Pressure Range
0.1 to 0.8 MPa
Voltage
24VDC, 24VAC, 110VAC, 220VAC


Dimension:

2'' Inch Explosion-Proof Pulse Jet Valve For Dust Collector DN50 220V 110V 24V 0


Video of BFEC Dust Collector Pulse Jet Valves:


Related Products:

2'' Inch Explosion-Proof Pulse Jet Valve For Dust Collector DN50 220V 110V 24V 1
2'' Inch Explosion-Proof Pulse Jet Valve For Dust Collector DN50 220V 110V 24V 2 2'' Inch Explosion-Proof Pulse Jet Valve For Dust Collector DN50 220V 110V 24V 3 2'' Inch Explosion-Proof Pulse Jet Valve For Dust Collector DN50 220V 110V 24V 4
Solenoid Coil Solenoid Armature Diaphragm Pulse Controller
