| Place of Origin: | CHINA |
| اسم العلامة التجارية: | BRANDO |
| إصدار الشهادات: | None |
| Model Number: | MF-Z-20 |
| Minimum Order Quantity: | 1 set |
|---|---|
| الأسعار: | قابل للتفاوض |
| Packaging Details: | Inner Box,Carton,Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Name: | BFEC Pulse Jet Valve | Port Size: | 3/4'' |
|---|---|---|---|
| Remote Pilot Size: | 1/8'', 1/4'' | Valve Type: | Right Angle, Threaded Port |
| Diaphragm Material: | NBR, FKM | Working Pressure Range: | 0.1 To 0.8 MPa |
| إبراز: | SBFEC MF-Z-20,BFEC MF-Z-20 Pulse Jet Valve,Remote Pilot Pulse Valve 3/4'',BFEC MF-Z-20 Pulse Jet Valve,Remote Pilot Pulse Valve 3/4'' |
||

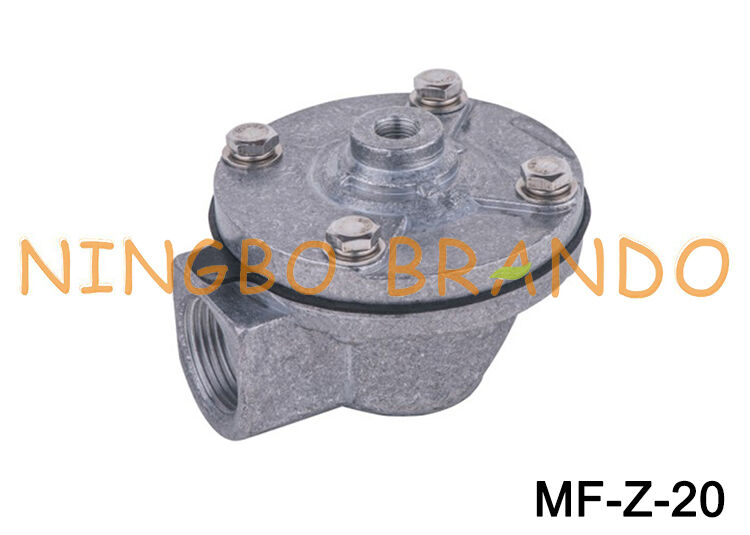

MF-Z-20 Pulse Jet Valves 3/4'' DN20 BFEC Pneumatic Remote Pilot Pulse Valve
Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type
Ordering Code of Z Series Pulse Valve:
Technical Data of Z Type Right Angle Pulse Jet Valves:
|
Integral Pilot
|
DMF-Z-20
|
DMF-Z-25
|
DMF-Z-40S
|
DMF-Z-50S
|
DMF-Z-62S
|
DMF-Z-76S
|
DMF-Z-102S
|
|
Remote Pilot
|
MF-Z-20
|
MF-Z-25
|
MF-Z-40S
|
MF-Z-50S
|
MF-Z-62S
|
MF-Z-76S
|
MF-Z-102S
|
|
Port Size
|
3/4''
|
1''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
4''
|
|
Diaphragm Number
|
1
|
2
|
|||||
|
Diaphragm Material
|
NBR, FKM
|
||||||
|
Body Material
|
Aluminum Alloy
|
||||||
|
Working Pressure Range
|
0.1 to 0.8 MPa
|
||||||
|
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
||||||
Main Dimension:
Video of BFEC Dust Collector Pulse Jet Valves:
