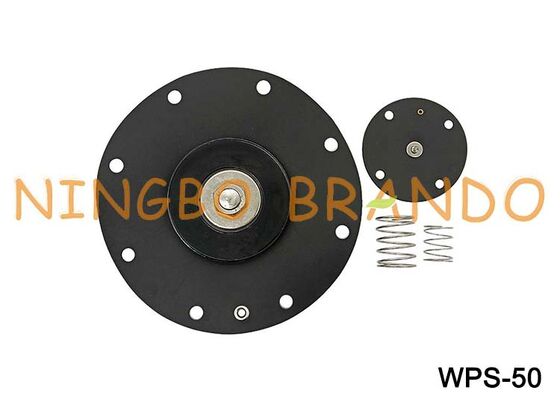

Pulse Valve Diaphragm for Watson WPS-CA/TG50 WPS-CA/EP50 2''

Pulse Valve Diaphragm for Watson WPS-CA/TG50 WPS-CA/EP50 2''

  • Pulse Valve Diaphragm for Watson WPS-CA/TG50 WPS-CA/EP50 2''
  • Pulse Valve Diaphragm for Watson WPS-CA/TG50 WPS-CA/EP50 2''
Pulse Valve Diaphragm for Watson WPS-CA/TG50 WPS-CA/EP50 2''
تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: Ningbo BRANDO
إصدار الشهادات: None
رقم الموديل: WPS50
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 مجموعة
الأسعار: قابل للتفاوض
تفاصيل التغليف: الصناديق الداخلية والكرتون والمنصات النقالة
وقت التسليم: 7 أيام عمل
شروط الدفع: / تي تي، ويسترن يونيون، بايبال
القدرة على العرض: 100000 قطع شهريا
اتصل
مفصلة وصف المنتج
اسم المنتج: الحجاب الحاجز لصمام النبض مادة الحجاب الحاجز: NBR (قياسي)، FKM (اختياري)
مادة المقعد: ممحاة منفذ صمام النبض المجهز: 2''
نموذج صمام النبض المجهز: WPS-CA/TG50، WPS-CA/EP50 1 مجموعة: 1 قطعة كبيرة الحجاب الحاجز ، 1 قطعة صغيرة الحجاب الحاجز ، 2 قطعة الينابيع
إبراز:

Diaphragm For WATSON Pulse Valve,Membrane For WATSON Pulse Valve,WATSON Pulse Valve Repair Kit

,

Membrane For WATSON Pulse Valve

,

WATSON Pulse Valve Repair Kit

Pulse Valve Diaphragm for Watson WPS-CA/TG50 WPS-CA/EP50 2''



Electromagnetic pulse valve, also called diaphragm valve acts as a "switch" for compressed air in the dust clean blowing system for pulse bag filters. The electromagnetic pulse valve is composed of electromagnetic pilot operator, diaphragm and valve body. It is controlled by the electric signals from the pulse-jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.


Ordering Code of Diaphragm:

Diaphragm Model No
Fitted Pulse Valve Model No
Pulse Valve Port Size
Diaphragm Material
WPS20
WPS-CA/TG20
WPS-CA/TD20
3/4''
NBR
WPS25
WPS-CA/TG25
WPS-CA/TD25
WPS-CA/EG25
1''
WPS40
WPS-CA/TG40
WPS-CA/TD40
WPS-CA/EG40
1 1/2''
WPS50
WPS-CA/TG50
WPS-CA/EP50
2''
WPS62
WPS-CA/TG62
WPS-CA/EP62
2 1/2''
WPS76
WPS-CA/TG76
WPS-CA/EP76
3''
WPS102
WPS-CA/EP102.B
WPS-CA/EP102
4''
WPS200
WPS-CA/EP200
8''
WPS250
WPS-CA/EP250
10''
WPS300
WPS-CA/EP300
12''
WPS350
WPS-CA/EP350
14''
WPS400
WPS-CA/EP400
16''
EPDM, FKM can be customized


Dimension of WPS50 Diaphragm:

Pulse Valve Diaphragm for Watson WPS-CA/TG50 WPS-CA/EP50 2'' 0



Pictures of Pulse Valve Membrane Production:

Pulse Valve Diaphragm for Watson WPS-CA/TG50 WPS-CA/EP50 2'' 1


More Products For WATSON Pulse Valve for you to choose:

Pulse Valve Diaphragm for Watson WPS-CA/TG50 WPS-CA/EP50 2'' 2 Pulse Valve Diaphragm for Watson WPS-CA/TG50 WPS-CA/EP50 2'' 3 Pulse Valve Diaphragm for Watson WPS-CA/TG50 WPS-CA/EP50 2'' 4
Solenoid Coil Solenoid Armature Pulse Controller


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
