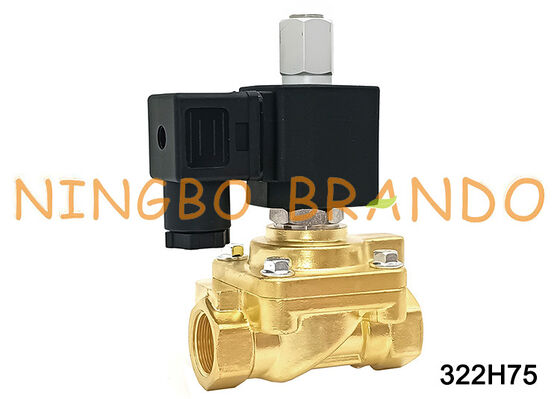

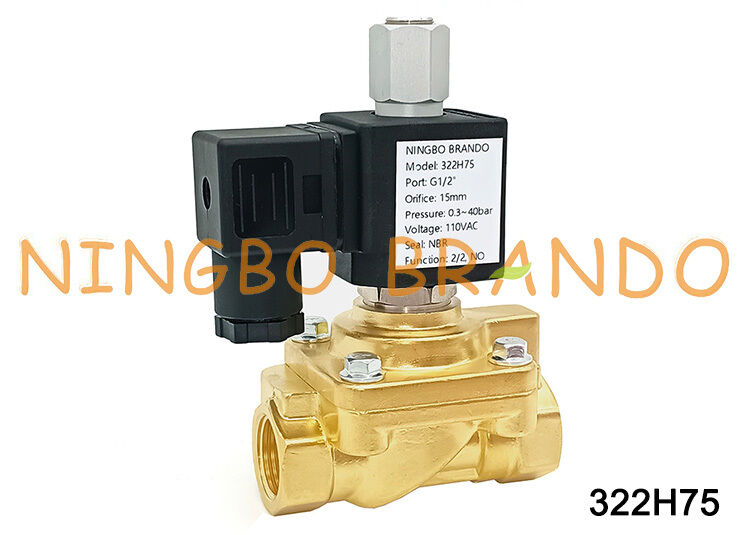

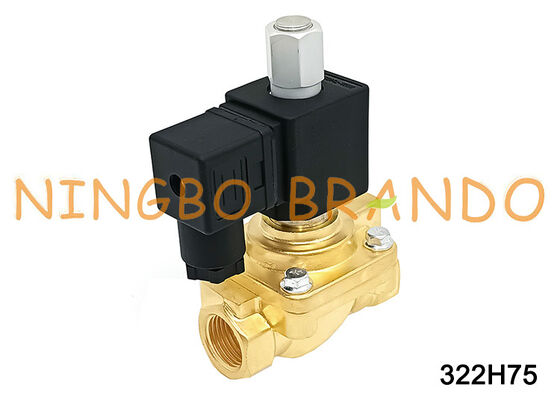

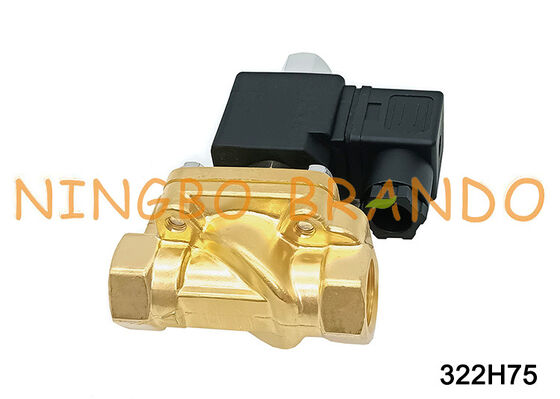

Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V

Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V

  • Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V
  • Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V
  • Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V
  • Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V
Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V
تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: BRANDO
إصدار الشهادات: None
رقم الموديل: 322ح75
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 جهاز كمبيوتر
الأسعار: قابل للتفاوض
تفاصيل التغليف: الصندوق الداخلي، الكرتون، البليت
وقت التسليم: التفاوض
شروط الدفع: / تي تي، ويسترن يونيون، موني جرام
القدرة على العرض: 100000 قطعة شهريا
اتصل
مفصلة وصف المنتج
حجم المنفذ: 1/2 " حجم الفتحة: 15 ملم
فعل: تعمل طيار الحجاب الحاجز وسائط: الماء والهواء والغاز
مادة الجسم: النحاس نطاق الضغط: 0.3 إلى 40 بار
الجهد االكهربى: 12VDC ، 24VDC ، 24VAC ، 110VAC ، 220VAC وظيفة: 2 طريقة فتح عادة
أمثلة التطبيق: آلة نفخ الزجاجات، آلة قطع الليزر، ضاغط الهواء، الخ
إبراز:

Normally Open High Pressure Solenoid Valve 322H75,Parker 322H75 Solenoid Valve,Parker Lucifer 322H75 Solenoid Valve

,

Parker 322H75 Solenoid Valve

,

Parker Lucifer 322H75 Solenoid Valve

Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V


Product Features:
1. Working Media: Air, Water, Neutral Gases & Liquids, etc
2. Working Pressure: 0.3 to 40 bar
3. Media Temperature: -5 to +80℃
4. Port Size: 1/4'', 3/8'', 1/2''
5. Orifice Size: 15mm
6. Body Material: Brass
7. Diaphragm Material: NBR
8. Function: 2 Way Normally Open
9. Operation: Diaphragm Pilot Operated
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
11. Application Examples: Bottle Blowing Machine, Laser Cutting Machine, Air Compressor, etc


Technical Data:

Model No
322H71
322H73
322H75
Port Size
1/4''
3/8''
1/2''
Orifice Size
15mm
Kv
3.6
Function
2 Way Normally Open
Operation
Diaphragm Pilot Operated
Working Medium
Air, Water, Neutral Gases & Liquids, etc
Working Pressure
0.3 to 40 bar
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)


Main Dimension:

Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V 0


Our Production:

Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V 1


Similar Items:

Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V 2 Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V 3 Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V 4 Parker Type 322H75 1/2'' Normally Open Solenoid Valve 40 bar 24V 110V 220V 5

1/2'' 40 bar

2 Way NC

1/2'' 40 bar

2 Way NO

1/2'' 40 bar

2 Way NC

1/2'' 40 bar

2 Way NO


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
